C. FERREIRA In Leandro N. de Castro and Fernando J. Von Zuben, eds., Recent Developments in Biologically Inspired Computing, pages 82-103, Idea Group Publishing, 2004.

Gene Expression Programming and the Evolution of Computer Programs

Gene Expression Programming


Gene expression programming was invented by myself in 1999 (Ferreira 2001), and incorporates both the simple, linear chromosomes of fixed length similar to the ones used in genetic algorithms and the ramified structures of different sizes and shapes similar to the parse trees of genetic programming. This is equivalent to say that in gene expression programming the genotype and phenotype are finally separated and the system can now benefit from all the advantages this brings about.

Thus, the phenotype of GEP consists of the same kind of ramified structure used in genetic programming. But the ramified structures created by GEP (expression trees) are the expression of a totally autonomous genome. Therefore, with gene expression programming, the second evolutionary threshold – the phenotype threshold – is crossed (Dawkins 1995). This means that, during reproduction, only the genome (slightly modified) is passed on to the next generation and we no longer need to replicate and mutate rather cumbersome structures: all the modifications take place in a simple linear structure which only later will grow into an expression tree.

The fundamental steps of gene expression programming are schematically represented in Figure 5. The process begins with the random generation of the chromosomes of a certain number of individuals (the initial population). Then these chromosomes are expressed and the fitness of each individual is evaluated against a set of fitness cases (also called selection environment). The individuals are then selected according to their fitness (their performance in that particular environment) to reproduce with modification, leaving progeny with new traits. These new individuals are, in their turn, subjected to the same developmental process: expression of the genomes, confrontation of the selection environment, selection, and reproduction with modification. The process is repeated for a certain number of generations or until a good solution has been found.

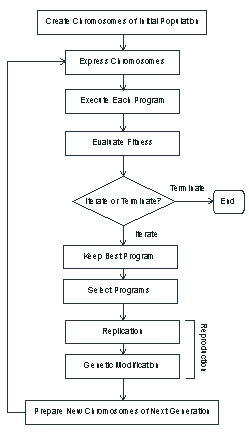

Figure 5. The flowchart of gene expression programming.

The pivotal insight of gene expression programming consisted in the invention of chromosomes capable of representing any parse tree. For that purpose a new language – Karva language – was created in order to read and express the information encoded in the chromosomes. The details of this new language are given in the next section.

Furthermore, the structure of the chromosomes was designed to allow the creation of multiple genes, each coding for a smaller program or sub-expression tree. It is worth emphasizing that gene expression programming is the only genetic algorithm with multiple genes. Indeed, the creation of more complex individuals composed of multiple genes is extremely simplified in truly functional genotype/phenotype systems. In fact, after their inception, these systems seem to catapult themselves into higher levels of complexity such as the multicellular systems, where different cells put together different consortiums of genes (Ferreira 2002a).

The basis for all this novelty resides on the revolutionary structure of GEP genes. The simple but plastic structure of these genes not only allows the encoding of any conceivable program but also allows their efficient evolution. Due to this versatile structural organization, a very powerful set of genetic operators can be easily implemented and used to search very efficiently the solution space. As in nature, the search operators of gene expression programming always produce valid structures and therefore are remarkably suited to creating genetic diversity.
